Jumpgate Multi-Function Portable Dock for Nintendo Switch 2/NS1 (Original/Powered/OLED)

Jumpgate Multi-Function Portable Dock for Nintendo Switch 2/NS1 (Original/Powered/OLED)

TWD$749
TWD$749 TWD$749
0%折扣 Sold out
Tax included. Shipping calculated at checkout.
type
Add-on options
有商品選項缺貨中，等待到貨或向經銷商查詢。 需要補貨通知嗎?
請注意：限量版及停產商品不適用本功能。 您需要 Jumpgate Multi-Function Portable Dock for Nintendo Switch 2/NS1 (Original/Powered/OLED) 的哪個規格？
7-11 FamilyMart SF master visa JCB

All products pass the EU RoHS non-toxic environmental standards

View full details

product description

Key Features:

  • Modular Design - The Micro Core Drive and base housing are removable.
  • One base, two consoles - detachable micro core (Core Drive) for Nintendo Switch (NS2/NS1) and Steam Deck, ROG Ally and other handheld consoles.
  • Unparalleled portability - The tiny Core Drive can be taken anywhere.
  • Case compatible - No need to remove the case when attaching the dock.
  • Connect to most electronic devices - The tiny Core Drive acts as a USB hub, offering one HDMI 2.1 and three USB 3.0 ports (Pro version only).
  • Built-in DeX (TV-out) function - turns your smartphone (must support DeX) into a computer.
  • High-resolution output - supports up to 8K@30Hz and 4K@120Hz.

Version comparison:

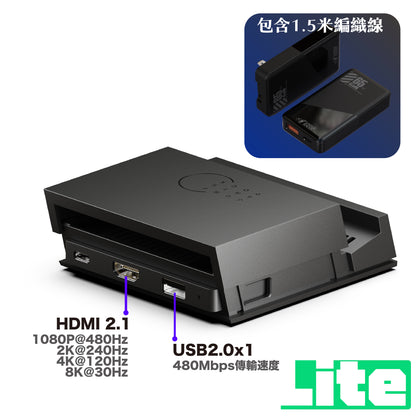

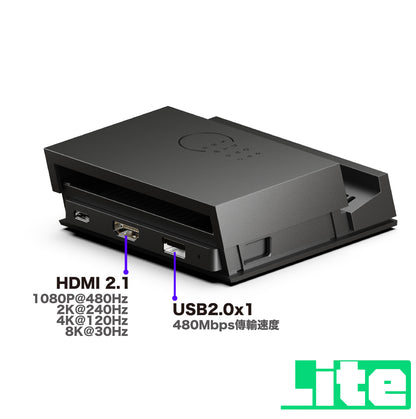

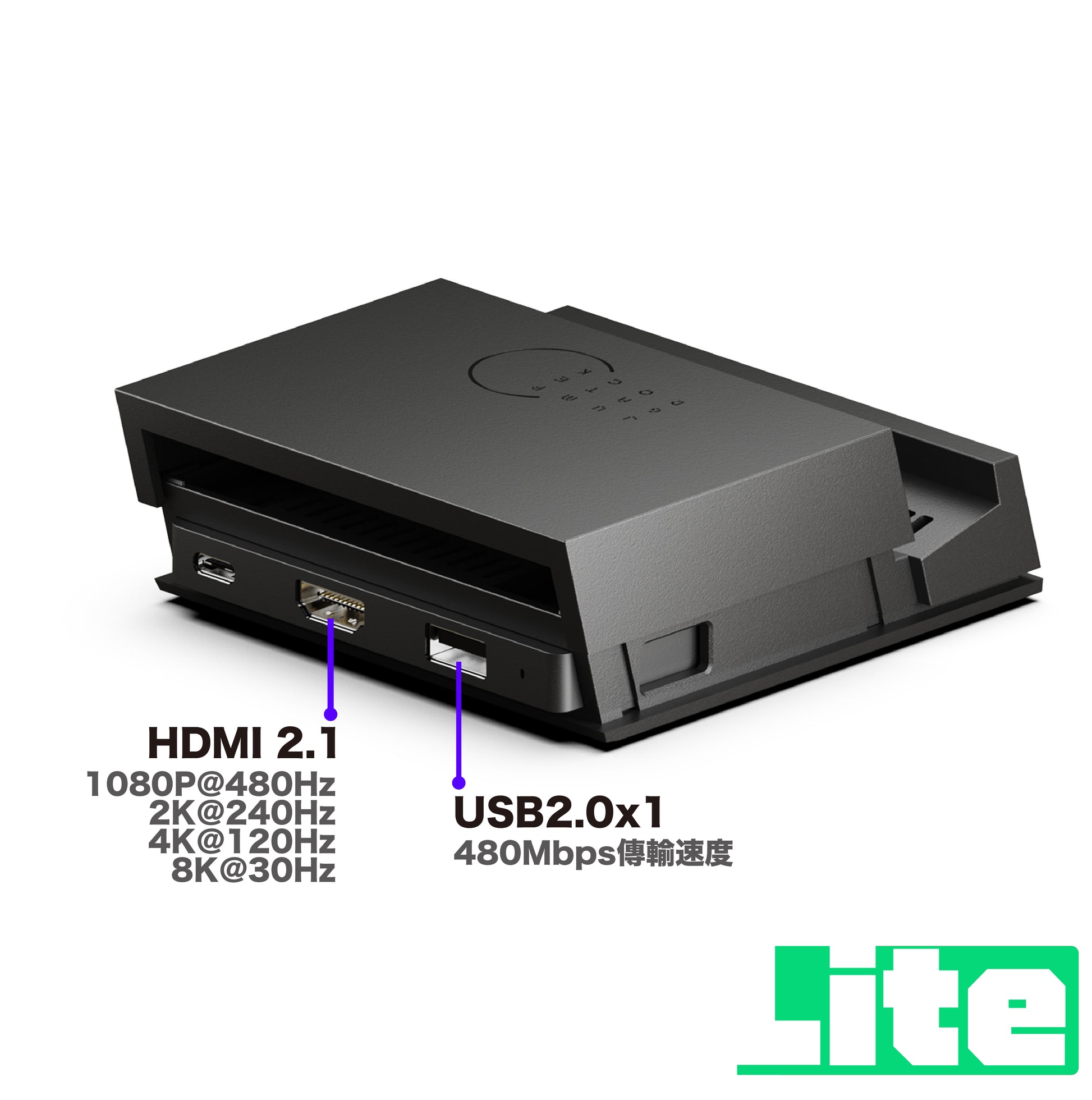

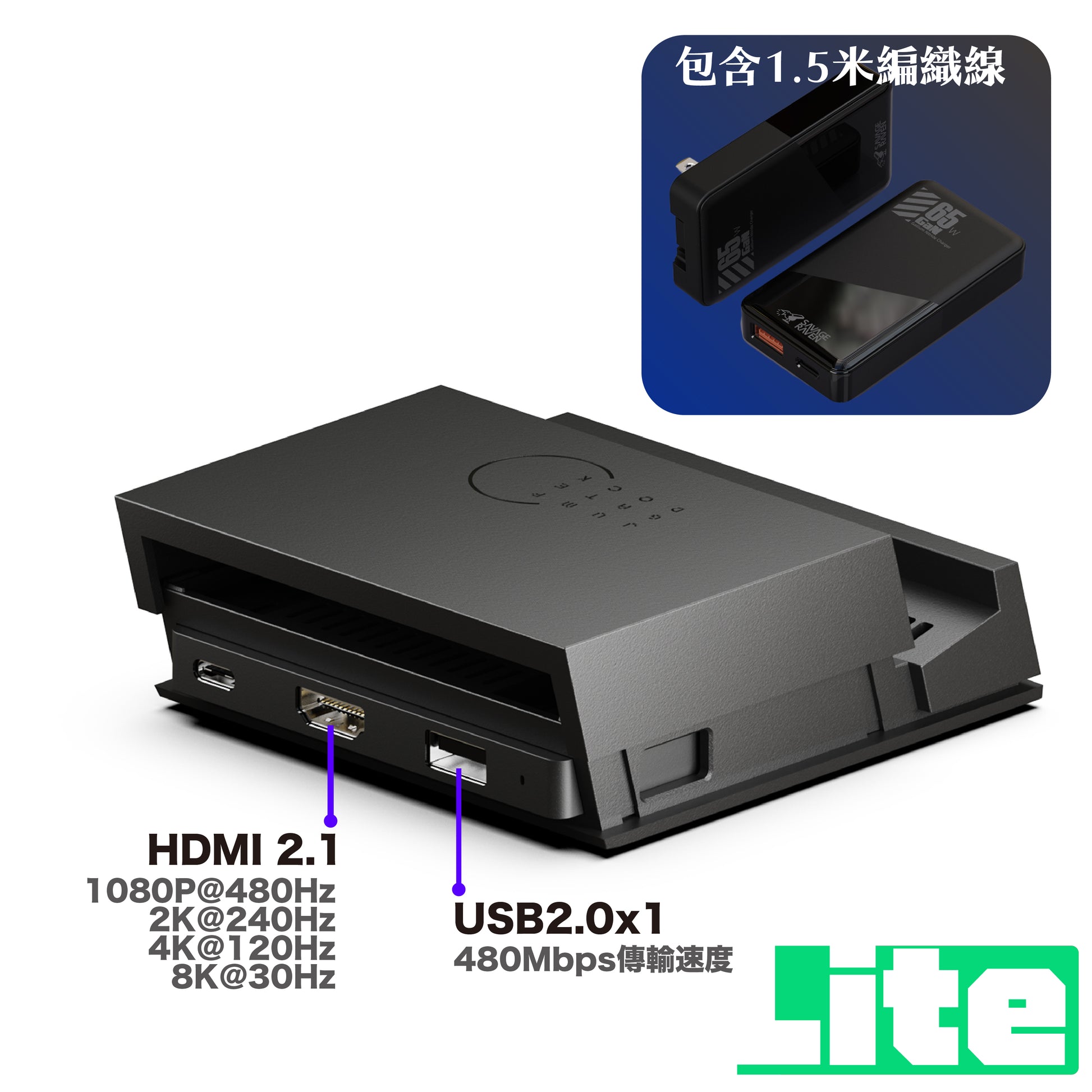

  • Lite version Suitable for those who simply want to replace the original dock, a USB2.0 external accessory, for light use.

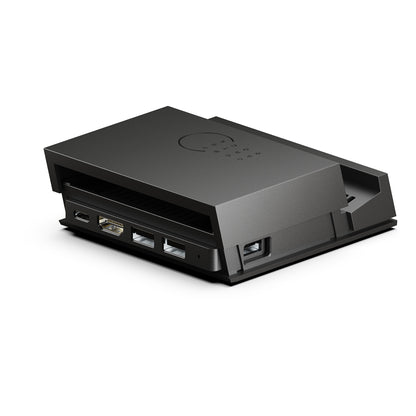

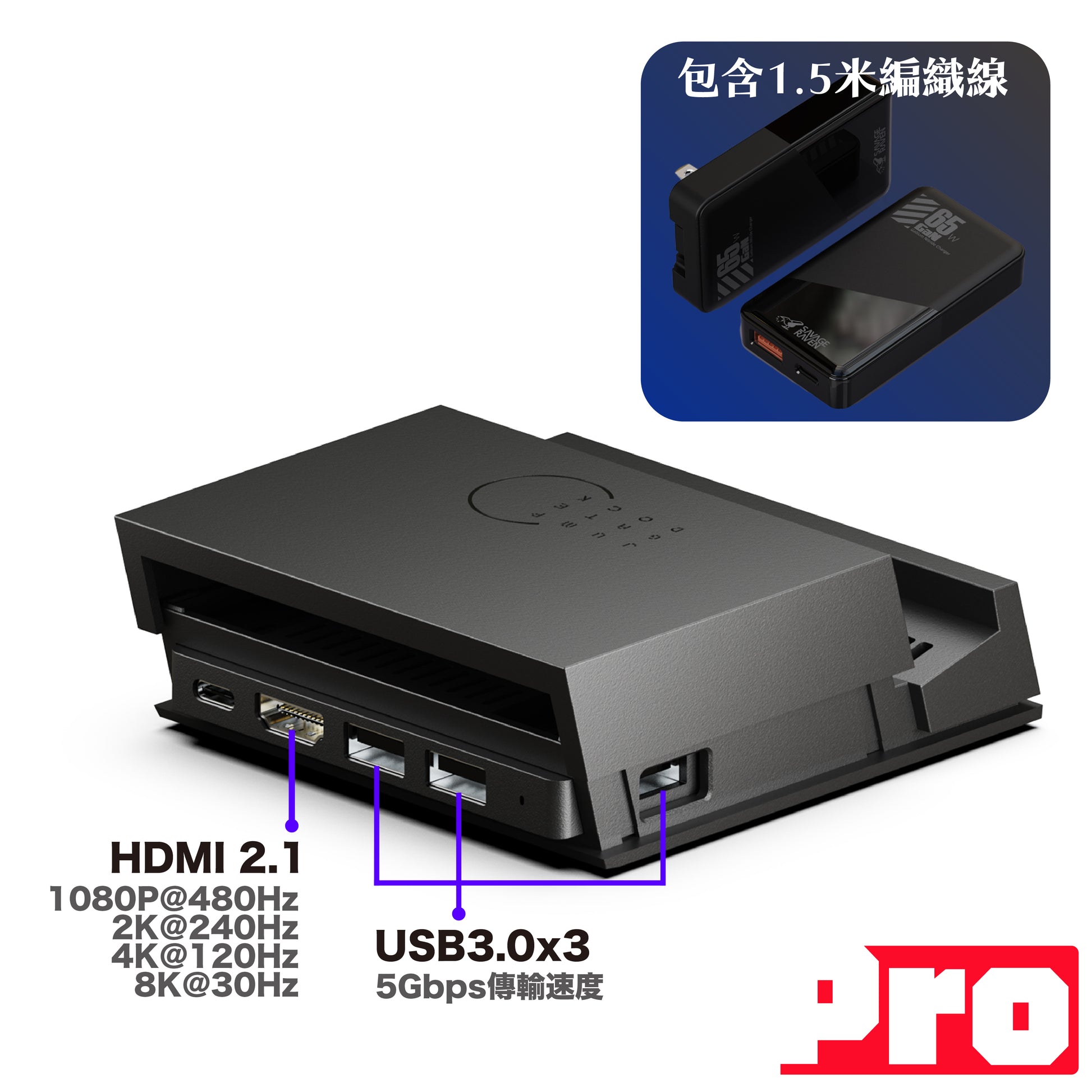

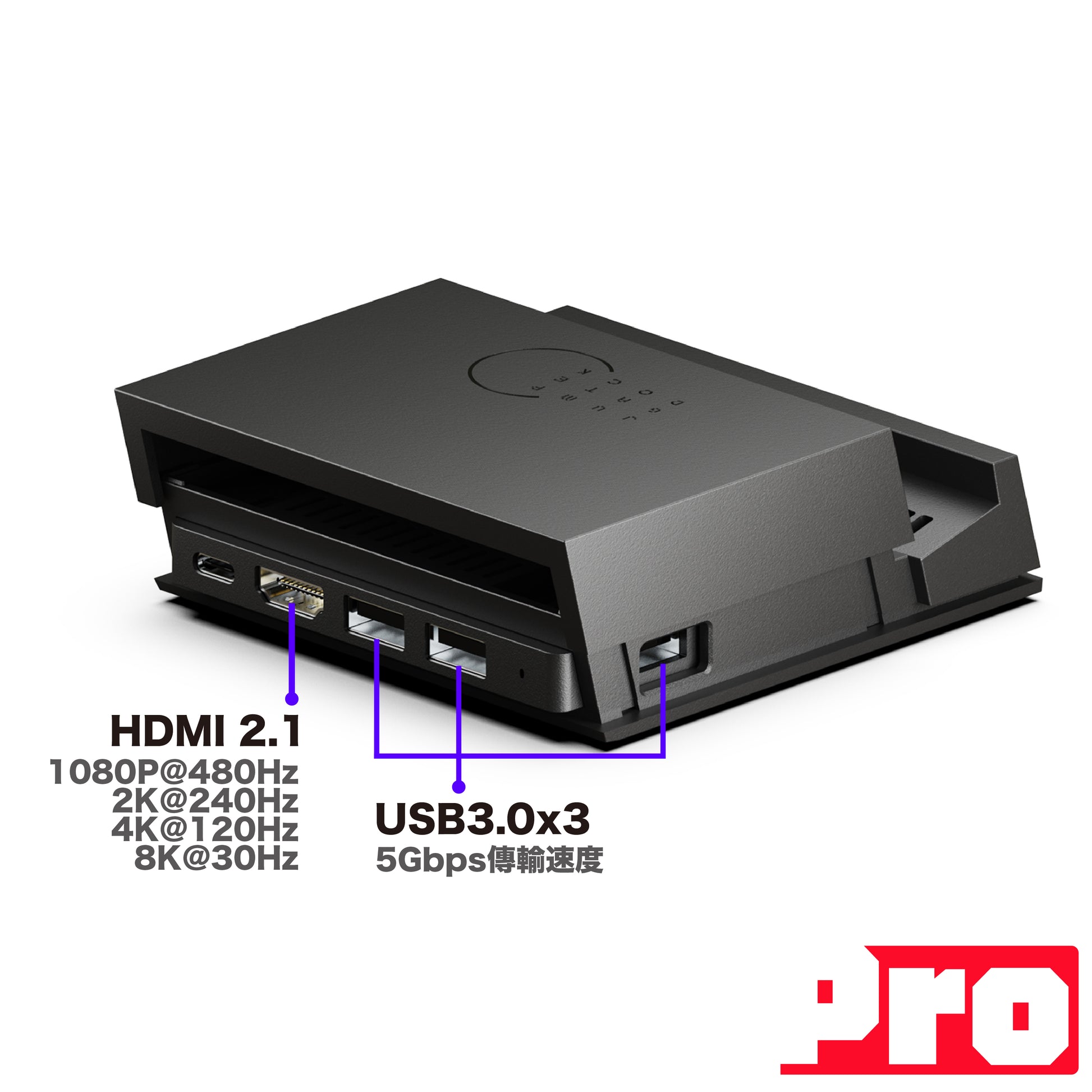

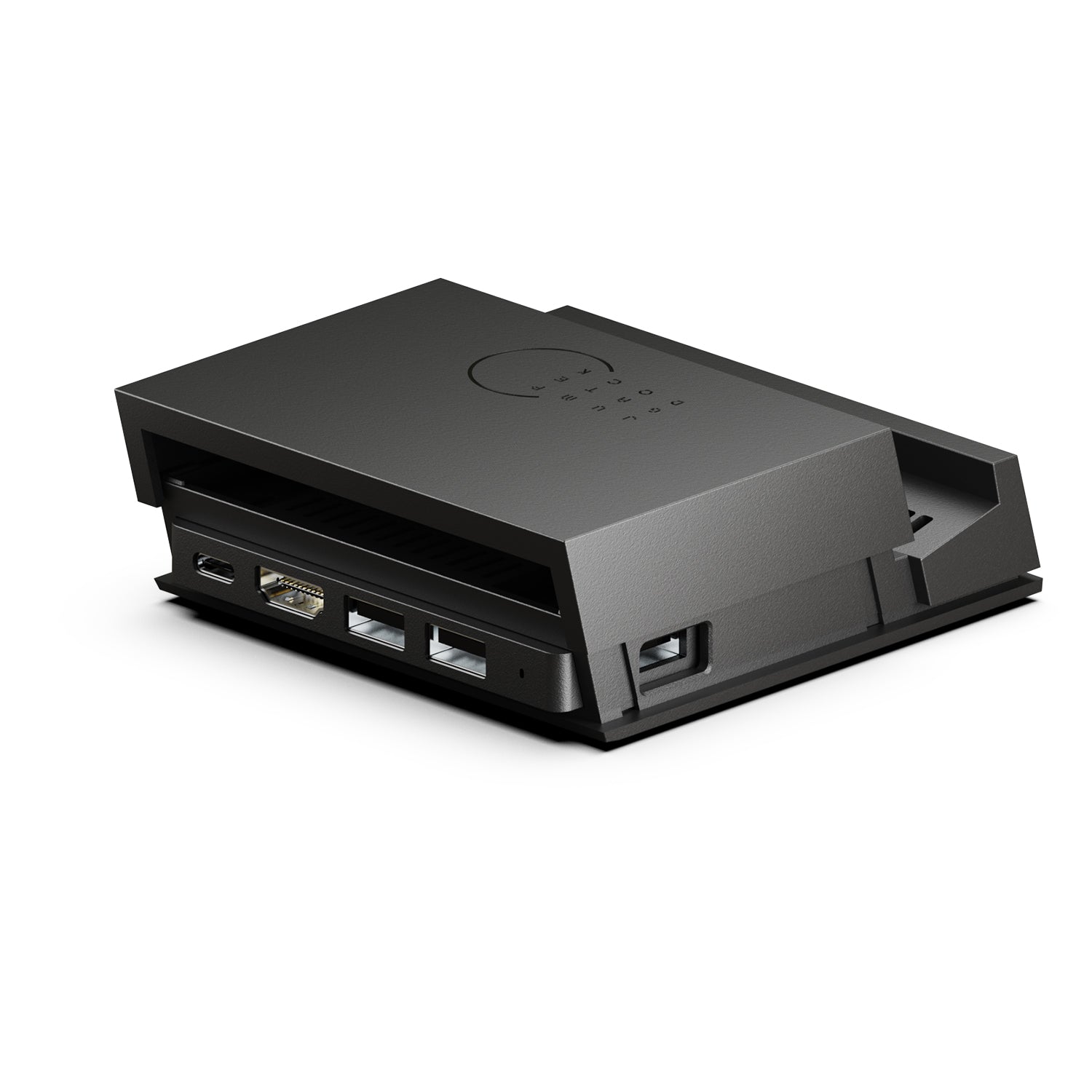

  • Pro version Suitable for hardcore gamers, with three USB 3.0 slots, faster speed, and support for more external accessories or laptop expansion.

This brand's protective case support list:

  • NS2-NEOGrip2 grip protective case
  • NS2-GripCase2 grip protection soft case
  • NS1- NEOGrip grip case
  • NS1- GripCase transparent grip protection soft cover

  • Can be used with a mini USB wired network adapter to expand wired network connection.
  • The Type-C connector is suitable for protective cases with a thickness of no more than 1.5mm.
  • The Type-C version of iPad, iPad Pro, iPhone, and Macbook can output images.

Without the Micro Core Drive, the base enclosure cannot output images and audio to the TV.

  • Due to the short length of the micro core connector, it is recommended not to use the micro core alone to connect a Switch with a protective case .

(The micro core connector is designed for devices like laptops, so there is no extension design for the connector.)

  • Due to the large number of laptop models on the market, compatibility issues may occur on some laptops, so we cannot guarantee compatibility with all laptops.

Only the Pro version of Jumpgate/Core Drive can be updated via firmware.

Contents:

  • 1x Jumpgate Dock
  • 1x Micro Core Drive (installed in the base)
  • 1x Product Instructions

    ＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿＿

    🎮Micro Core Drive Technical Specifications:

    • Dimensions: 88x37x10mm
    • Material: ABS+PC
    • 1x HDMI 2.1 (up to 8K@30Hz, 4K@120Hz)
    • 1x Type-C 3.1 (up to 100W full-speed power delivery)
    • 3x USB 3.0 (Pro version) with a maximum power of 10W and a transmission speed of 5Gbps
    • 1x USB 2.0 (Lite version) Maximum power 10W, 480Mbps transmission speed

    DC/DC efficiency: up to 96%

    Equipment operating temperature: below 115°F/46°C

    Jumpgate Dock Technical Specifications:

    • Size: 107*100*25mm
    • Material: ABS+PC
    • 1x Type-C 3.1 male connector (full function)
    • 1x Type-C 3.1 female connector (Up to 100W full-speed power supply)

    65W GaN Power Adapter Technical Specifications:

    • Material: Fireproof PC
    • Size: 83.7*46*16mm
    • Weight: 68g
    • Maximum power: 65 watts
    • Input: 100V-240V~50/60Hz 0.6A max
    • Output:

    Type-C: 5V=3A 9V=3A 12V=3A 15V=3A 20V=3.25A 65W(MAX)

    USB-A: 5V=3A 9V=2A 12V=1.5A 18W(MAX)

    USB-A+Type-C: 5V2.4A+45W
